Product Introduction
The belt conveyor is a high-performance belt conveyor researched
and developed by the company in accordance with the actual
situation of the production lines in such industries as diggings,
coal mining and metallurgy, etc.The belt conveyor adopts modular
part design, which can greatly simplify the production process,
reduce the difficulty in installation and removal, save the
logistic cost, shorten the stock cycle, improve the product quality
and facilitate later maintenance.
Our coal/mine transportation belt conveyor system project overview:
The wharf for belt conveyor and unloading trolley system
application of East Coal South shift project in Shijiu port area,
Rizhao port is located in the south 5 × 3-7 × 3 berths of the
eastern coastline of the three-port pool in the South operation
area of Shijiu port area, Rizhao Port, and the storage yard is
located in the east side of the coke yard in the middle of the
South three jetties.
| Belt speed (m/s) | Belt width (mm) |
| 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Conveying capacity (T/H) |
| 0.80 | 69 | 127 | 198 | 324 | | | | | | | |
| 1.00 | 87 | 159 | 248 | 405 | 593 | 825 | | | | | |
| 1.25 | 108 | 198 | 310 | 507 | 742 | 1032 | | | | | |
| 1.60 | 139 | 254 | 397 | 649 | 951 | 1321 | | | | | |
| 2.00 | 174 | 318 | 496 | 811 | 1188 | 1652 | 2186 | 2795 | 3470 | | |
| 2.50 | 217 | 397 | 620 | 1014 | 1486 | 2065 | 2733 | 3494 | 4338 | | |
| 3.15 | | | 871 | 1278 | 1872 | 2602 | 3444 | 4403 | 5466 | 6843 | 8289 |
| 4.00 | | | | 1622 | 2377 | 3304 | 4373 | 5591 | 6941 | 8690 | 10526 |
| 4.50 | | | | | 2674 | 3718 | 4920 | 6291 | 7808 | 9776 | 11842 |
| 5.00 | | | | | 2971 | 4130 | 5466 | 6989 | 8676 | 10863 | 13158 |
| 5.60 | | | | | | | 6122 | 7829 | 9717 | 12166 | 14737 |
| 6.50 | | | | | | | | 9083 | 11277 | 14120 | 17104 |
2, Our belt conveyor features:
1. Large conveying capacity and longer conveying distance, up to
20km or longer
2. Can conveyor various kinds of bulk material and itemized goods
with a bulk density of 0.5~2.5t/m³
3. Can adopt a combined conveying mode of the convexly curved
segment, concave curved segment, or straight-line segment.
4. According to different transportation requests, it can be singly
used or multiple combined using also can be used together with
other equipment to organize a horizontal or declining conveying
system.
5. It can be used between -25ºC~+40ºC working environment, the
temperature of conveying material under 80ºC with high
adaptability.
Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including
turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting
leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg
14.Slider 15.Driven assembly 16.Head chute
The project plans to build 21 belt conveyors for coal unloading,
stacking, transferring, reclaiming, and loading, including 7
transfer rooms, 3 transfer platforms, 6 head platforms and their
auxiliary facilities, which will adopt the mode of combination of
new construction and relocation.
(1) the rated capacity of the unloading trolley (XL1, XL2) of the
project is 3600t / h, and the maximum capacity is 4000t / h.
(2) the belt conveyor system of the project includes two types: the
rated capacity of the stacking line belt conveyor system is 3600t /
h, the belt width is 1.8m, and the belt speed is 4.0m/s; the rated
capacity of the loading line belt conveyor system is 6000t / h, the
belt width is 2.2M, and the belt speed is 4.3m/s.
1, Our Belt Conveyor Introduction:
Our company is committed to the design, development, manufacturing,
installation, and maintenance of bulk conveying system equipment,
large process equipment, port handling machinery, and auxiliary
equipment. Since 2002, over 20 years, relying on Shanghai port to
provide designing, manufacturing, installation, and maintenance
general contracting services for port equipment operation and
maintenance, providing targeted solutions for customers, making the
design more in line with the needs of the owner, accumulating rich
experience in production, installation, operation, and maintenance
of the continuous conveying system and material handling machinery,
and maintaining a good partnership with a number of internationally
renowned enterprises.
The company's business areas cover ports, mining, cement, power,
metallurgy, paper, and other industries. The main products are DTII
type, DX type universal belt conveyor, DG type pipe belt conveyor,
DD type air cushion belt conveyor, DY type mobile belt conveyor, DJ
type corrugated belt conveyor and its components idler roller,
frame, etc., stacker and reclaimer, high pole lamp, sweeping car,
pulley, grab, wear-resistant lining, etc., the products are
exported to Europe. , Australia, America, Southeast Asia, and other
regions.General Technical Parameter

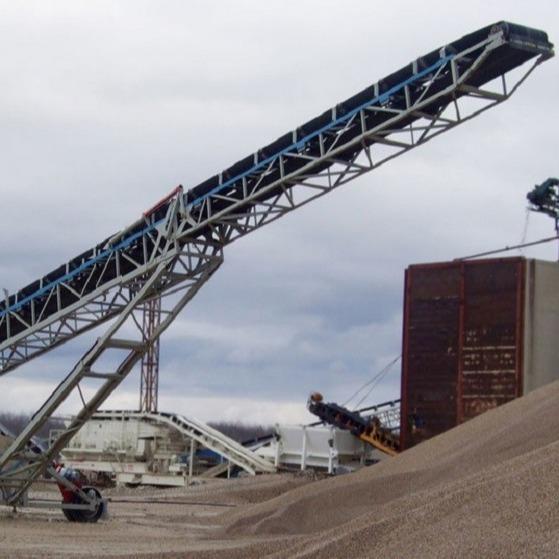

Site Photo
Product Advantages
 | Professional engineer team:
In the past 20 years, we have rich experience in providing long distance belt conveyor products and services to more than 50 countries and regions;
Customized belt conveyor solutions can meet the special needs of bulk material handling such as large capacity, long distance, large inclination and turning, and solutions such as tubular conveyor and mobile belt conveyor can be provided;
Professionally solutions of special materials with high humidity and high viscosity;
Comply with different standards such as CEMA, DIN, JIS, as, SABS, etc;
Low energy consumption and low noise, and meets the local environmental protection requirements;
Integrated intelligent control technology can realize the centralized control of the long distance belt conveyor system and production equipment. |
Reliable quality:
International top brands conveyor drive equipment, bearings and
belts are adopted, which greatly improves the service life of the
belt conveyor system. | |
 | Perfect after-sales service:
Provide whole process installation guidance and commissioning services to help customers reduce operation and maintenance costs of the belt conveyor system. |
Application And Project Cases
|
Belt Conveyor System of Vietnam FHS Steel Plant | Tubular Belt Conveyor of Jinping Hydropower Station | Belt Conveyor System of Thailand Power Plant |
|
Belt Conveyor System of HBIS Group Iron Mine | Belt Conveyor System of UHV Power Transmission in China | Belt Conveyor System of Tianjin YongLi Chemical Industry |
Description of Long distance belt conveyor
long distance belt conveyor can be used to continuously convey bulk
materials through long distance, with large inclined angles and in
complex terrain,every single conveyor can be designed, manufactured
and installed according to clients’ requirements.
Features and advantage
incressed tensile stength of modern conveyor belts allow for the
construction of long distance curved conveyors of up to 30
kilometers and for belt widlths of up to 500-2600mm.compared to the
standard belt conveyor,curved conveyors may exhibit serval
advancements such as:
1.Decreased material transportation costs;
2.Decreased in fixed assets cost(railway or highway);
3.Decreased drive devices and transfer points.
4.simple structure, low operation cost, low working noise, running
safely and stably, clean and highly efficient.
5.Conveyor systems are the logical connection between the phases of
mining, processing, and storage.
application
Long distance belt conveyoris widely used in ports,terminals,wharf,
power plants,steel plant,chemical plant,cement
factories,metallurgy,coal mining and other industries.Bulk material
such as coal,lime stone,iron ore and clean coal,etc.
Packing And Delivery
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation.
Besides, we can provide guidance service for installation and
operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after
your order. If your equipment are not manufactured by our company,
please provide us the wearing parts drawing or number.
