    Rubber Curved Mobile Belt Conveyor For Dirt Sludge Ore Sand Gravel Aggregate

    Ask Lasest Price
    Brand Name : RUNWELL
    Model Number : B500,B650,B800,B1000,B1200, B1400,B1600
    Certification : CE,ISO certificates
    Price : USD15000-2000000
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Rubber Curved Mobile Belt Conveyor For Dirt Sludge Ore Sand Gravel Aggregate

    Durable Rubber Belt Conveyor for Ore Sand Gravel Aggregate Coal Soil Dirt Sludge curved conveyor belt, Long-Distance Curved Belt Conveyor System

    Description

    Belt Conveyor


    Product Introduction
    The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.


    Structural characteristics of belt conveyor:
    1. The belt conveyor can transport a wide variety of materials.
    2. There are various forms of structure, including trough belt conveyor, flat belt conveyor, climbing belt conveyor, roll belt conveyor, turning belt conveyor and other forms.
    3. The conveyor belt is made of various materials such as rubber, canvas, PVC, PU, etc.
    4.The conveyor belt is traction continuous transportation equipment,The applicable working environment temperature of belt conveyor is generally -25~40ºC.
    5. The conveying is stable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed material.
    6.The noise is smaller, and it is suitable for occasions quiet environment.
    7. The belt conveyor has simple structure, easy maintenance, low energy consumption and low use cost.
    8. Specifications: The standard conveyor belt widths: 500, 650, 800, 1000, 1200, 1400mm, and the belt speed is 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4, 4.5, 5m/s10 Standard belt speed and 0.2, 0.3, 0.4m/s 3 kinds of non-standard belt speed.
    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical
    Belt Conveyor Technical Specifications
    Belt width(mm)Belt speed (m/s)
    0.81.01.31.62.02.53.24.05.06.5
    Capacity (m³/h)
    5006987108139174217
    650127159198254318397
    800198248310397496620781
    1000324405507649811101412781622
    120059374295111881486187223772971
    14008251032132116522065260233044130
    160021862733344443735466
    1800279534944403559169899083
    20003470433854666941867611277
    2200684386901086314120
    24008289105261315817104
    Remark: Capacity is calculated by material horizontal conveyoring ,20°Operating stacking Angle,35°roller groove Angle .
    The basic structure of belt conveyor:

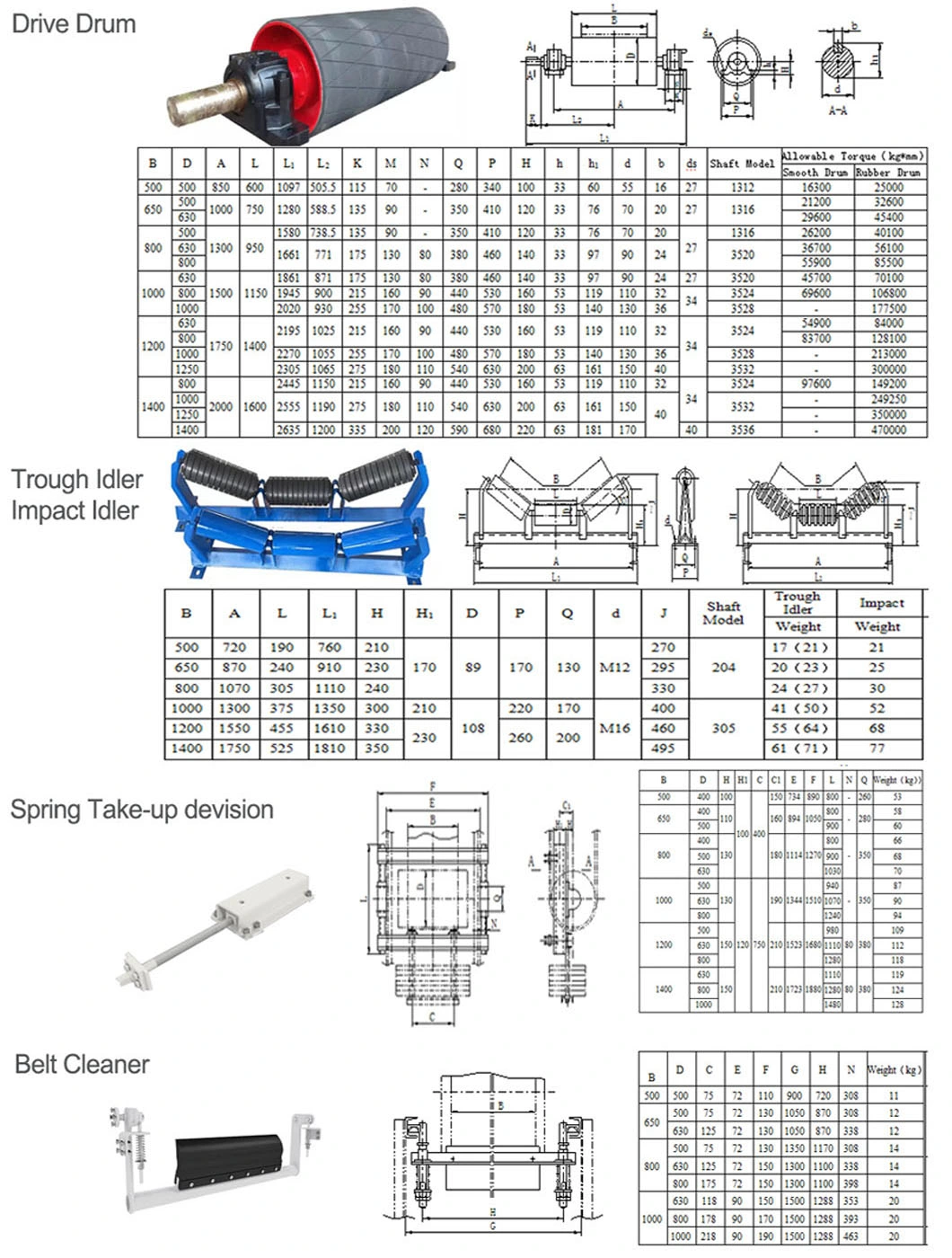

    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical The components of belt conveyor system:
    Various common types of belt conveyors, common accessories for conveyors such as rollers, idlers, couplings, impact beds, and cleaners.All the components are made in house to ensure the high quality of the belt conveyor system.
    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical
    The specification of our main products:
    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical The professional performance:
    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical
    High-quality trough belt conveyor's applicable working environment temperature is generally -25 ~ +40 ºC. In case of special working environment, if conditions such as heat resistance, acid and alkali resistance,cold resistance, , anti-corrosion, explosion-proof, flame retardant and downhole work are required, other corresponding protective measures should be taken.
    High-quality trough belt conveyors can transport
    materials in bulk and bags, such as stone, sand,
    coal, concrete, cement,gravel, fertilizer, mineral or limestone, coke, sawdust, woodchips, bulk materials, grains, cornflakes, carbon black, etc.
    Horizontal Long-Distance Belt Conveyor System for Downhole Mining/Power Plant/Cement/Port/Chemical
    Our Workshop:
    MACHINE:We have advanced laser cutting machines, a complete set of intelligent sheet metal forming equipment, robot welding and other processing and testing equipment.
    PAINTING: We use electrostatic spraying to ensure variety, model and quality of coatings, thinners and curing agents should meet the design requirements and the current relevant national standards. The steel surface should be free of welding slag, welding scars, dust, oil, water and burrs before painting. No mispainting or omission, and the coating should be free of peeling and rust. Inspection method: observation and inspection. Uniform brushing, consistent color, no wrinkles,sagging and bubbles, good adhesion, and the color separation line should be clear and neat.
    DELIVERY:The goods and product factory certificate, installation and use instructions and drawings, a full set of connectors. After the equipment arrives at the site, the company immediately arranges professional and technical personnel to guide the installation on site to provide customers with satisfactory services.
    PACKAGE:Packed with steel frame or wooden box, according to the standardfor trade export or according to the special requirements of customers.

    High Quality Belt Conveyor for Quarry Crushing Plant
    Features
    Product advantages:
    1. It is one of the cheapest ways to move material long distances.
    2. There is virtually no degradation of your product caused by conveying.
    3. The conveyor can have changes in elevation.
    4. The material can be visible on the belt while being conveyed.
    5. Belts can be loaded virtually any place along the belt.
    6. The belt can have "trippers" to unload the belt almost any place.


    Main Structure
    1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
    4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
    10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
    High Quality Belt Conveyor for Quarry Crushing Plant


    Site Photo
    High Quality Belt Conveyor for Quarry Crushing Plant


    High Quality Belt Conveyor for Quarry Crushing Plant
    Packaging and Shipping
    High Quality Belt Conveyor for Quarry Crushing Plant
    Questions & Answers

    1. How long is the delivery time of your product?
    The delivery time is within 20 working days.

    2. What is the payment term?
    The payment term is T/T.

    3.How long is the product warranty period?
    Our warranty period is 1 year, excluding wearing parts.

    4.What's the after sale service of your company?
    We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

    5. Can your company provide wearing parts?
    We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
