    Wheel Type Sand Electric Vibrating Sieve Machine 50 TPH 5.5kw For Construction

    Ask Lasest Price
    Brand Name : RUNWELL
    Model Number : XS-2800
    Certification : CE,ISO certificates
    Price : USD15000-25000
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Wheel Type Sand Electric Vibrating Sieve Machine 50 TPH 5.5kw For Construction

    Good Performance/High Capacity/Construction/Gold Mining Wheel Type Sand Washing/Cleaning Machine/Sand Washer

    Product Description

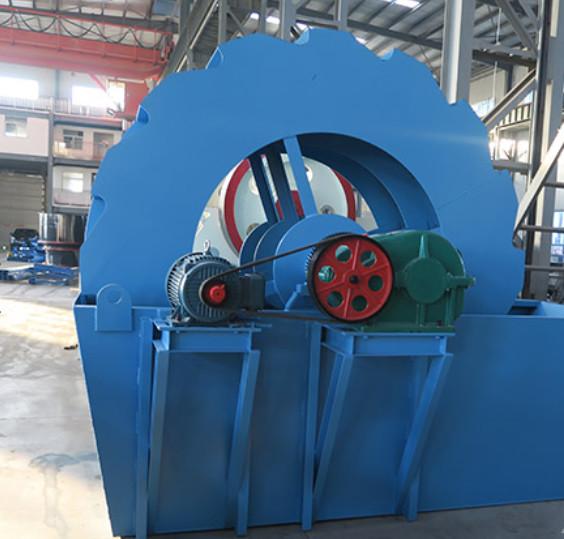

      The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.

    Wheel Type Sand Electric Vibrating Sieve Machine 50 TPH 5.5kw For Construction

    Working Principle

      Sand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

    Zenith sand washing machine equipment, sand washing machine with CE


    Wheel Type Sand Electric Vibrating Sieve Machine 50 TPH 5.5kw For Construction

    High Quality Industrial Minerals Easy Install Single Wheel Bucket Sand Washer

    Product Description

    The bucket sand washer is also called water wheel sand washer. This machine is a high-efficiency sand washing device developed in conjunction with the actual situation of the domestic sand and stone industry.


    It has fewer wearing parts,a reasonable structure, and a large output. There is little loss, especially the transmission part is isolated from water and sand.

    Specification


    ModelXS2610XS2610IIXS2800XS3200XS3600
    Diameter of The Wheel Bucket(mm)26102610280032003600
    Rotation Rater (r/min)2.52.51.211
    Maximum Feeding Size(mm)≦10≦10≦10≦10≦10
    Processing Capacity(t/h)20~5030~7050~10080~120120~180
    Motor Power (kw)5.55.57.51115
    Overall Dimensions(mm)3515*2070*26723515*2070* 26723900*3300* 29903965*4440* 34104355*4505* 3810
    Weight (kg)2500290039807270

    9430


    Specification

    ModelScrew diameter(mm)Length of Chute (mm)Max feeding size(mm)Capacity (t/h)Speed (r/min)Power (kw)Water Consumption(t/h)Overall dimension(L×W×H)(mm)Weight(t)
    XL5085086705≦1020385.56-608000*2343*14302.67
    XL6106107225≦1040-50327.56-638000*2050*14003.80
    XL7627627620≦1050-7526119-638545*2650*38625.23
    XL9209208026≦10100181110-808715X1632X20754.6
    2XL9209208026≦10150-180182*1120-1608715X2602X20757.9
    XL111511158532≦10175181520-1509231X1833X21265.6
    2XL111511158532≦10200-250182*1540-3009231X2995X212610

    Wheel Type Sand Electric Vibrating Sieve Machine 50 TPH 5.5kw For Construction

    Questions & Answers
    1. How long is the delivery time of your product?
    The delivery time is within 20 working days.

    2. What is the payment term?
    The payment term is T/T.

    3.How long is the product warranty period?
    Our warranty period is 1 year, excluding wearing parts.

    4.What's the after sale service of your company?
    We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

    5. Can your company provide wearing parts?
    We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
