200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact

Shanghai Runwell Machinery Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact from wholesalers

    Buy cheap 200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact from wholesalers
    • Buy cheap 200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact from wholesalers

    200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact

    Ask Lasest Price
    Brand Name : RUNWELL
    Model Number : VSI-1140
    Certification : CE&ISO
    Price : USD 30000-50000
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    200Kw Artificial Sand Making Plant Processing 480 TPH High Capacity Vertical Impact

    Product Description

    VSI/VSI5X Vertical Shaft Sand Making Machine
    Application of VSI/VSI5X
    Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc. This machine is designed to make high quality sand for highway, high-speed railway, high-rise buildings, municipal engineering, hydropower dam construction and aggregate concrete mixing station. Its the best choice in the field of artificial sand and stone shaping equipment. Suitable materials like Cobble, granite, basalt,iron ore, limestone, calcite, quartzite, diabase, etc.

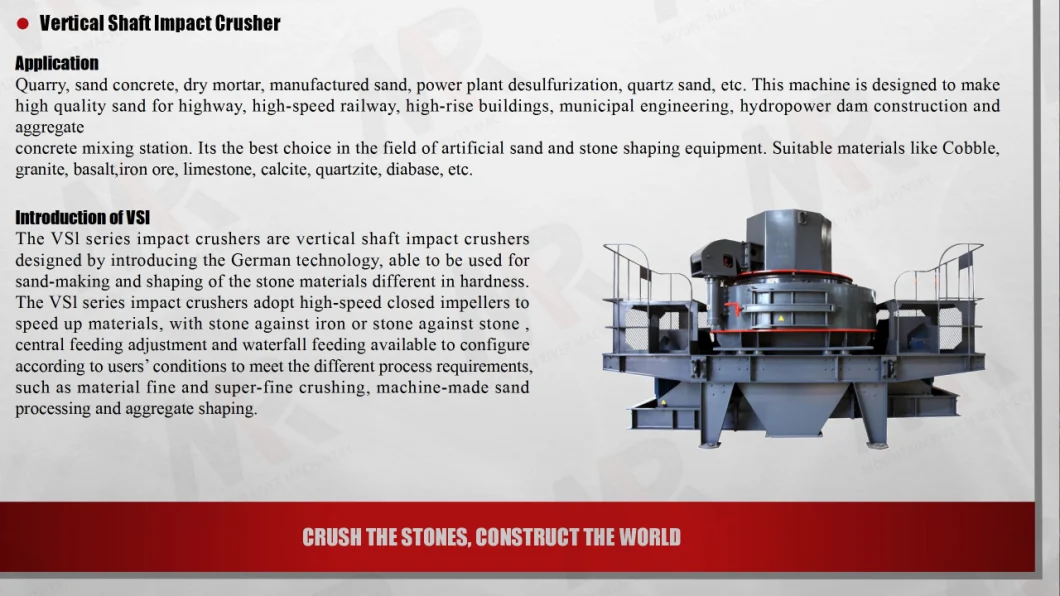

    Introduction of VSI
    The VSl series impact crushers are vertical shaft impact crushers designed by introducing the German technology, able to be used for sand-making and shaping of the stone materials different in hardness. The VSl series impact crushers adopt high-speed closed impellers to speed up materials, with stone against iron or stone against stone , central feeding adjustment and waterfall feeding available to configure according to users' conditions to meet the different process requirements, such as material fine and super-fine crushing, machine-made sand processing and aggregate shaping.
    High Capacity Vertical Sand Crusher

    Main Structure&Features of VSI
    1. The crushing cavity internal items can be changed or repaired easily and fast, because of adopting hydraulic drive cover device.
    2. With the unique feeding crusher structure, it is convenient to realize the "stone crushing stone "and "stone crushing Iron", can crush and shape stones.
    3.High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.

    High Capacity Vertical Sand Crusher
    Introduction of VSI5X
    The VSI5X series impact crushers are a new generation of high-efficiency vertical shaft impact crushers developed and designed on the basis of the previous generation of VSI series impact crushers, boasting a number of independent patents, as well as higher production efficiency and lower use cost . It have been he most widely used abroad.
    High Capacity Vertical Sand Crusher

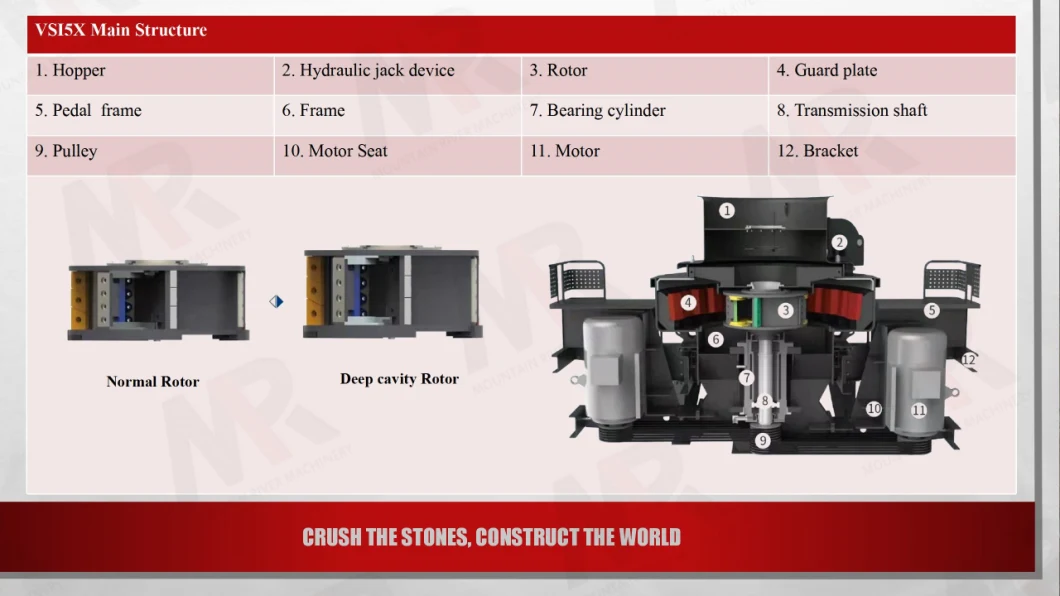

    Main Structure of VSI5X
    High Capacity Vertical Sand Crusher

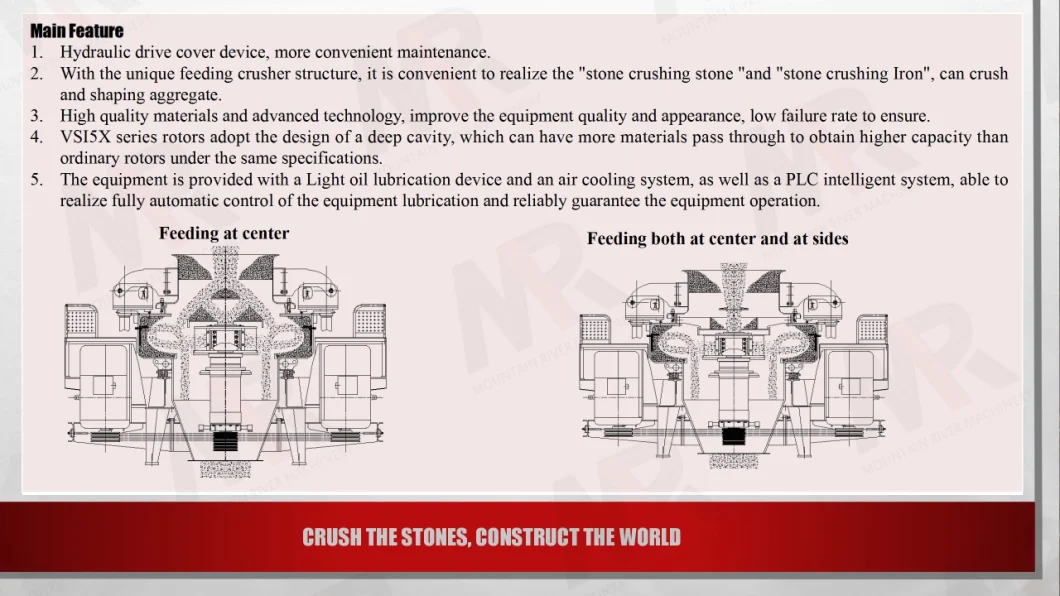

    Features of VSI5X
    High Capacity Vertical Sand Crusher
    Technical Parameters
    ModelCapacity
    (t/h)
    Max. feeding size
    (mm)
    Rotation Speed
    (r/min)


    Double Motor
    Power

    (kw)


    Dimension
    (mm)


    Feed both at Center
    and at sides
    Feed at centerSoft
    material
    Hard
    material
    VSI5X7615150-28070-140<35<301700-1900110-1504100×2330×2300
    VSI5X8522240-380120-200<40<351500-1700180-2204140×2500×2700
    VSI5X9532350-540180-280<45<401300-1510260-3204560×2600×2900
    VSI5X1145500-640250-360<50<451100-1310400-4405100×2790×3320
    VSI7611120-18060-90<35<301700-18901103880×2350×2300
    VSI 8518200-260100-130<40<351520-16901803900×2500×2700
    VSI9526300-380150-190<45<40<>1360-15102644360×2600×2900
    VSI1140450-520225-260<50<45<>1180-13104004850×2790×3300

    Site Photo
    High Capacity Vertical Sand Crusher
    Company Profile
    Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
    High Capacity Vertical Sand Crusher High Capacity Vertical Sand CrusherHigh Capacity Vertical Sand CrusherHigh Capacity Vertical Sand CrusherHigh Capacity Vertical Sand Crusher
    Packaging and Shipping
    High Capacity Vertical Sand Crusher
    Questions & Answers

    1. How long is the delivery time of your product?
    The delivery time is within 20 working days.

    2. What is the payment term?
    The payment term is T/T.

    3.How long is the product warranty period?
    Our warranty period is 1 year, excluding wearing parts.

    4.What's the after sale service of your company?
    We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

    5. Can your company provide wearing parts?
    We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
