Nordberg Building Material Spring And Hydraulic Symons Cone Crusher Rock Stone Cone Crusher Price

Product Description

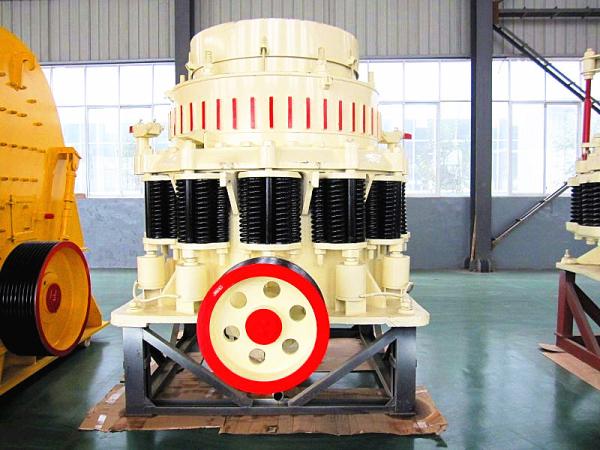

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.

Working Principle

Features

Symons cone crusher features :

1. Larger capacity achieved by the design of larger crush throw

2. Setting of discharge opening is hydraulic drive

3. Grease seal reduces dust contamination effectively

4. Cavities of standard or short head are changeable through different mantles and bowl liners

5. Hydraulic overload protection device helps to remove tramp iron and reduce downtime

6. Thin oil lubrication station is outfitted with air_conditioning cooling system for better cooling performance.

Specification

Symons cone crusher technology specfications:

Type	Model	Cavity Type	Diameter of cone (mm)	Adjusting Range of Discharge Opening (mm)	Recommend feeding size when the minimum output size (mm)	Max feed size (mm)	Capacity (t/h)	Main Motor Power (kw)	Weight (kg)	Overall Dimension (L×W×H) (mm)
2’FT	PSGB- 0607	Standard fine	600	6-38	70	60	16-50	22	4500	2195×1158×1651
	PSGB- 0609	Standard medium		10-38	95	80	18-65
	PSGB- 0611	Standard coarse		13-38	110	90	22-70
	PSGD- 0603	Short head fine		3-13	35	30	9-35
	PSGD- 0605	Short head coarse		5-16	50	40	22-70
3’FT	PSGB- 0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB- 0917	Standard coarse		13-38	175	150	59-163
	PSGB- 0918	Standard super coarse		25-38	178	150	118-163
	PSGD-0904	Short head fine		3-13	41	35	27-90		10530
	PSGD-0906	Short head medium		3-16	76	65	27-100
	PSGD-0907	Short head coarse		6-19	102	85	59-129
4.25’FT	PSGB- 1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB- 1321	Standard medium		16-38	210	178	132-253
	PSGB- 1324	Standard coarse		19-51	241	205	172-349
	PSGB- 1325	Standard super coarse		25-51	259	220	236-358
	PSGD-1306	Short head fine		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head coarse		8-25	105	89	109-227
	PSGD-1313	Short head super coarse		16-25	133	113	209-236
5.5’FT	PSGB- 1620	Standard fine	1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB- 1624	Standard medium		22-51	241	205	258-417
	PSGB- 1626	Standard coarse		25-64	269	228	299-635
	PSGB- 1636	Standard super coarse		38-64	368	313	431-630
	PSGD-1607	Short head fine		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	short head coarse		10-25	133	113	190-336
	PSGD-1614	Short head super coarse		13-25	133	113	253-336
7’FT	PSGB- 2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
	PSGB- 2133	Standard medium		25-51	334	284	862-1424
	PSGB- 2136	Standard coarse		31-64	369	314	1125-1814
	PSGB- 2146	Standard super coarse		38-64	460	391	1252-1941
	PSGD-2110	Short head fine		5-16	105	89	218-463		89500
	PSGD-2113	Short head medium		10-19	133	113	404-580
	PSGD-2117	Short head coarse		13-25	178	151	517-680
	PSGD-2120	Short head super coarse		16-25	203	172	580-744

Questions & Answers

Questions & Answers

Q1: How to choose the suitable model ?

A: Please confirm the following information :

1. what kind of stone do you want to crush ? Such as granite ? limestone ?

2. what's the size of your stone before crush ? how many inch or mm ?

3. what's your requirements of final product size ? how many inch or mm ? such as 0-5,5-10,10-20,20-30mm

4. what's your requirements of production capacity ? how many ton per hour ? 100-150tph, 150-200tph, 200-300tph...

Q2. How long is the warranty? Does your company supply related spare parts?

A: The crusher equipment is warranted for one year. And we provide spare parts at reasonable price.

Q3: How long is the delivery time?

A: Generally it takes one week if the goods are in stock. Otherwise it needs 15-20 days, and it also depends on the ordered quantity.
