PF Good Quality & Good Price Mine/Stone/Rock/Mining/Mineral/Quarry/Granite/Limestone/Ore Hydraulic Impact rock Crusher

Granite Ore Impact Rock Crusher 100-150 TPH PF For Mineral Mining Quarry,granite crusher machine

PF series of equipment includes secondary and tertiary impact plate which can handle the materials less than 100-800mm in the length.It is suitable to crush the medium hard material with compressive resistance of 350Mpa. The discharging from impact crusher is small and fine granularity of cubic shape.

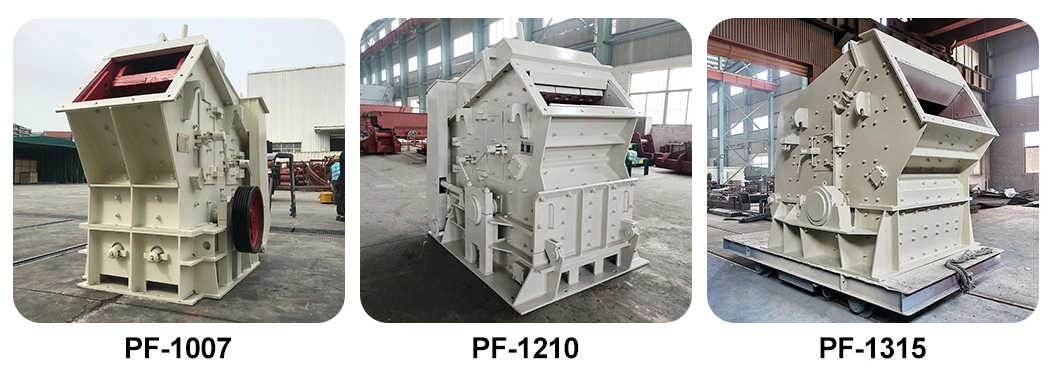

Model	Spec of Rotor(mm)	Feed Opening (mm x mm)	Max.Feed Edge(mm)	Capacity(tph)	Power(kW)	Weight(Excluding Electric Motor)(t)
PF-1007VI	Φ1000X700	400X730	300	20-40	55	9.5
PF-1010	Φ1000X1050	400X1080	350	50-80	55	12.8
PF-1010VI	Φ1000X1050	400X1080	350	50-80	55	12.6
PF-1210	Φ1280X1050	400X1080	350	70-120	110	14.1
PF-1210VI	Φ1280X1050	400X1080	350	70-120	110	13.2
PF-1214	Φ1280X1400	400X1430	350	95-145	132	16.8
PF-1214VI	Φ1280X1400	400X1430	350	95-145	132	15.3
PF-1315V	Φ1320X1500	800X1530	300	100-180	185/220	21.0
PF-1315VI	Φ1320X1500	800X1530	500	120-200	185	18.9
PF-1320	Φ1320X2000	800X2030	400	280-320	280	29.7
PF-1420	Φ1400X2000	1250X2030	600	250-350	355	40.0
PF-1515	Φ1500X1500	580X1580	350	220-280	280	28.5
PF-1620	Φ1600X2000	1600X2080	600-800	350-400	560	47.5

Impact crusher boasts cubic shape without tension and cracks. It can crush stone smaller than 500mm with compression strength lower than 350MPA, such as granite, limestone, concrete, etc.

Impact crusher is widely used in all kinds of ore crushing, railway, highway, energy, cement, chemical industry, construction, etc. The output size can be adjusted.

Working Principle

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor to rotate at a high speed, on which the blow bar is installed. As soon as the material gets into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

Benefits

• Hard rock crushing, energy efficient;
• Blow bar made of high-chromium iron with advantages of good wear resistance;
• Strong structure Steady performance
• No-board connection Easy to disassembly and maintain

Crusher Efficiency

PF impact crushers are the solution when output and productivity demands are increasingly stringent, from quarry to industrial applications and from mining to recycling. PF impact crushers feature a unique blow-bar attachment system. Combined with perfect blow-bar alignment on the crossbeam contact faces, this reduces risks of breakage and makes it possible to push the use of cast iron for blow bars beyond conventional limits. The rotor with high inertia improves crushing reduction and provides stability in the process, reducing energy consumption.

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
